AT-4400 Induction Powered Telemetry System
The AT-4400 is a 16 bit, high resolution, high accuracy, induction powered digital telemetry system. This system is ideal for precise torque measurements, where accuracy and resolution are critical. Shaft mounting is in glass-laminate (G10) split collars, or in custom OEM kits for torque transducer manufacturers.
Highlights
- Induction powered
- Remote shunt calibration invoked at receiver
- High data integrity and noise immunity
- Rugged, trouble-free construction
- Design flexibility
- Ideal solution for long term use
|
Specs
- Number of channels: 1
- Digital resolution: 16 bits
- Bandwidth: DC-2 kHz, with a sampling rate of 26,484 samples/s
- Inputs: strain gage (full-bridge) / RTD
- Output: standard +/- 10V analog output (user adjustable)
|
 |
| AT-4400 Transmitter |
|

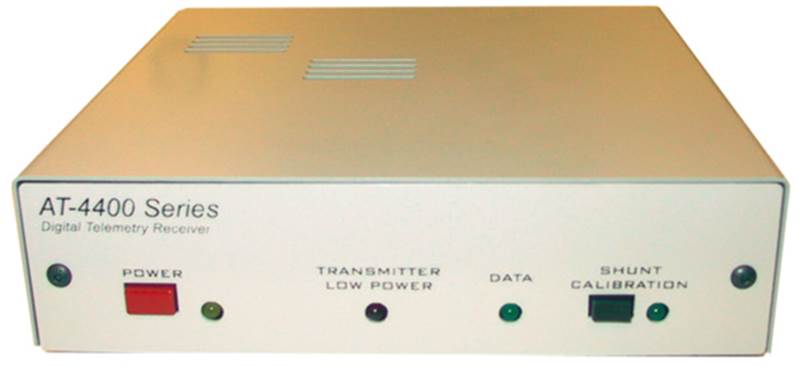

| AT-4400 Receiver |
|
 |
| AT-4400 Transmitter: (shown mounted on a 21.3” OD, 3000 RPM shaft) Rotating clamp-collar assembly supplying excitation to user-installed strain gage and transmitting digital strain gage data to pickup antenna. |
|
 |
| AT-4400 torque telemetry on large drive shaft |
|
|
